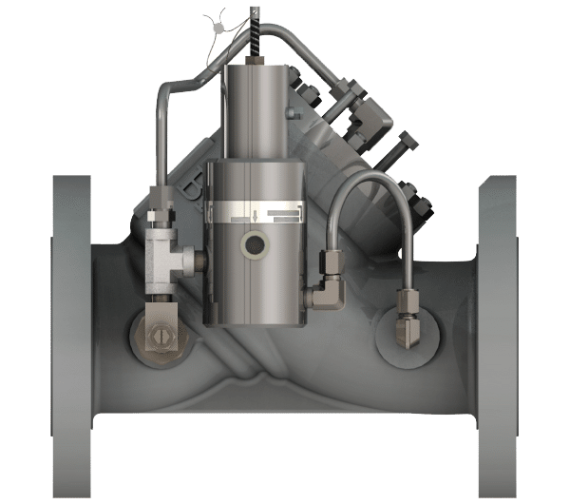

The Brodie BV70 differential control valve is a normally closed, regulating or positioning type valve designed for applications requiring valve closure on decreasing pressure differential such as pump differential pressure control and vapor pressure control for products with high flash points.

The valve does not require an outside power source to operate.

A controlled pressure differential is maintained within +/-2% regardless of variations in upstream or downstream pressure.

Brodie Valve Assembly

Play Video

Brodie Valve Disassembly

Play Video
Valve Size     2″ 3″ 4″ 6″ 8″ 12″
Dimensions 150 # Inches 10¼ 11 13 17 22½ CF
[flange to flange] MM 260 279 330 432 571 CF
Dimensions 300 # Inches   13⅛ 14½ 17⅞ 23½ CF
[flange to flange] MM   333 368 454 597 CF
Capacity CV-GPM   71 187 237 590 1178 CF
Pressure 150 #   SEP SEP SEP CRN, PED CRN, PED CF
Approvals 300 #   PED PED PED CF

CHECK VALVE FUNCTIONALITY

The valve piston spring, biased to the closed position, has equal front and rear surface areas. This means that every Brodie Model BV valve has check valve functionality, with bubble-tight shut-off – no additional system check valve is required to prevent reverse flow. The valve will only open when upstream pressure is sufficient to overcome spring force.

BRODIE VS DIAPHRAGM VALVES

There are many advantages in using piston-operated control valves as opposed to diaphragm-operated valves, including:

  • High flow capacity – lower pressure drop
  • Optimum control at low flow gives better batching control
  • Simple O-ring sealing – no special diaphragms
  • Alternative O-rings easily obtainable per product specifications

Designed to meet the challenges for today’s petroleum and environmental needs, Brodie’s positive sealing and linear action control valves provide uniform speed of response and leak-proof performance.



REDUCED COST OF OWNERSHIP

  • Long service life, only one moving part
  • Cylinder can be removed without removing body from the line
  • Cylinder assemblies available as replacement kits

SECURITY & CONTROL

  • Automatic shutoff for emergency protection
  • Pressure monitoring at all times

UNIFORM SPEED OF RESPONSE
Flow modulation avoids delayed response and valve slam.

  • Pilot operated
  • Positive Sealing/Zero Leakage
  • Modular construction/easy inline service
  • Adjustable opening and closing speeds – prevents damaging shock pressure
  • Linear action control for uniform fast speed of control
  • Simple design without diaphragms
  • Common valve body and internal mechanism simplifies spare parts inventory
  • Multiple control functions can be performed with one valve
